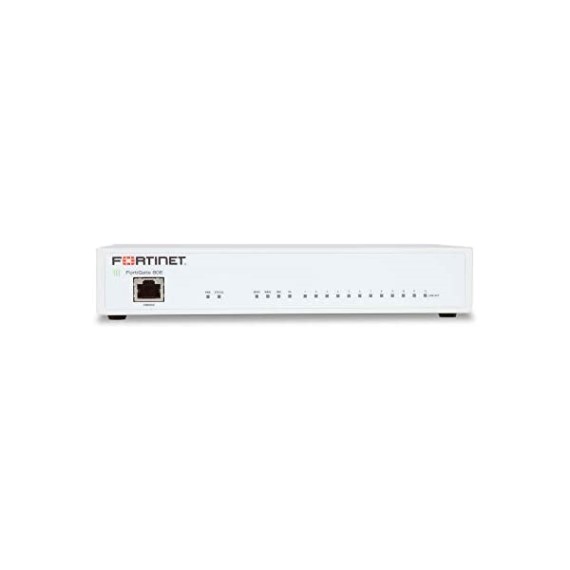

THIẾT BỊ TƯỜNG LỬA FIREWALL FORTIGATE FG-80E-BDL-950-12
| Mã sản phẩm | FG-80E-BDL-950-12 |
| Hardware Specifications | |
| GE RJ45/SFP Shared Media Pairs | 2 |
| GE RJ45 Ports | 12 |
| GE RJ45 PoE/+ Ports | - |
| GE RJ45 DMZ/HA Ports | 2 |
| USB Ports | 1 |
| Console (RJ45) | 1 |
| Internal Storage | - |
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 4 / 4 / 4 Gbps |
| Firewall Latency (64 byte UDP packets) | 3 μs |
| Firewall Throughput (Packets Per Second) | 6Mpps |
| Concurrent Sessions (TCP) | 1.3 Milion |
| New Sessions/Second (TCP) | 30,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) 1 | 2.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 2,500 |
| SSL-VPN Throughput | 200 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, HTTP) 3 | 180 Mbps |
| Application Control Throughput (HTTP 64K) 2 | 900 Mbps |
| CAPWAP Throughput (HTTP 64K) | 920 Mbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of Switches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 32 / 16 |
| Maximum Number of FortiTokens | 100 |
| Maximum Number of Registered FortiClients | 200 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| System Performance — Optimal Traffic Mix | |
| IPS Throughput 2 | 1.5 Gbps |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput 2 | 450 Mbps |
| NGFW Throughput 2, 4 | 360 Mbps |
| Threat Protection Throughput 2, 5 | 250 Mbps |
| Dimensions | |
| Height x Width x Length (inches) | 1.65 x 8.5 x 7 |
| Height x Width x Length (mm) | 42 x 216 x 178 |
| Weight | 2.65 lbs (1.2 kg) |
| Form Factor | Desktop |
| Environment | |
| Power Required | 100–240V AC, 50–60 Hz |
| Maximum Current | 100V AC / 0.65A, 240V AC / 0.29A |
| Total Available PoE Power Budget* | N/A |
| Power Consumption (Average / Maximum) | 20 W / 70 W |
| Heat Dissipation | 238.85 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Operating Altitude | Up to 16,404 ft (5,000 m) |
| Compliance | FCC Part 15B, Class B, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
THIẾT BỊ TƯỜNG LỬA FIREWALL FORTIGATE FG-80E-BDL-950-12
- 26.159.000đ
