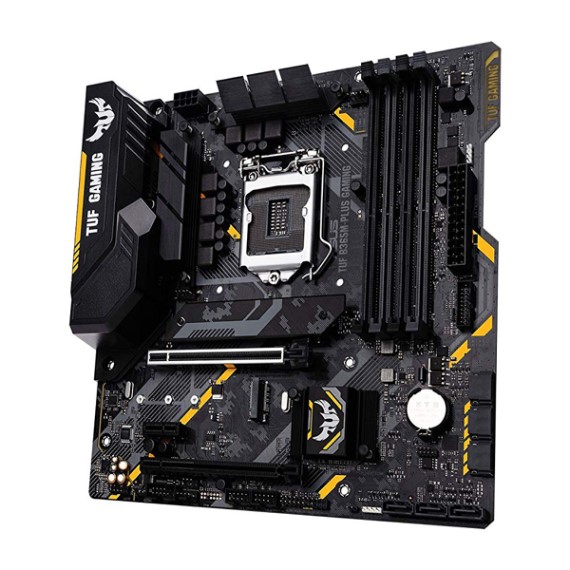

MAINBOARD ASUS TUF-B365M-PLUS-GAMING

Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0

Intel® B365 Chipset 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)

1 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (max at x4 mode) 1 x PCIe 3.0/2.0 x1

Intel® B365

Intel® B365 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board) Intel® B365 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

Intel® I219V, 1 x Gigabit LAN TUF LANGuard

Realtek® ALC1200 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Windows® 10 64-bit

1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 Type-A up to 5Gbps 2 x USB 2.0 1 x 8-channel Audio I/O

1 x Addressable RGB header 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, moss green) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector

mATX Form Factor 9.6 inch x 9.5 inch ( 24.4 cm x 24.1 cm )

36 tháng

ASUS
