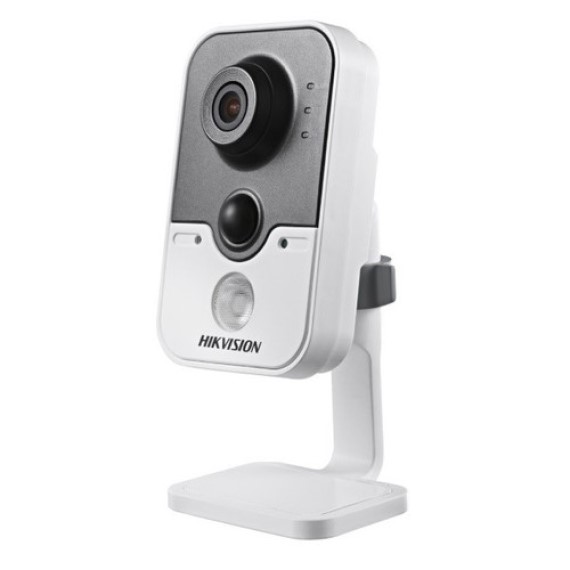

CAMERA IP HỒNG NGOẠI KHÔNG DÂY 1.0 MEGAPIXEL HIKVISION DS-2CD2410F-IW

Camera

Image Sensor

1/3″ Progressive Scan CMOS

Min. Illumination

0.01Lux @ (F1.2, AGC ON),0 Lux with IR

Shutter time

1/3 s to 1/100,000 s

Lens

4mm@ F2.0 (2.8mm, 6mm optional)

Angle of view: 92.5°(2.8mm), 73.1°(4mm), 46°(6mm)

Lens Mount

M12

Day& Night

IR cut filter with auto switch

Wide Dynamic Range

Digital WDR

Digital noise reduction

3D DNR

Compression Standard

Video Compression

H.264/MJPEG

Video bit rate

32Kbps~12Mbps

Audio Compression

G.711/G.722.1/G.726/MP2L2

Dual Stream

Yes


Max. Image Resolution

1280×960

Frame Rate

50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720), 25 fps (704 x 576),

25 fps (640 x 480)

60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720), 30 fps (704 x 576),

30 fps (640 x 480)

Image Settings

Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser

BLC

Yes, zone configurable

ROI

Support

Network

Network Storage

NAS (Support NFS,SMB/CIFS)

Alarm Trigger

Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception

Protocols

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,

PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour

Security

User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask

System Compatibility

ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI

Interface

Audio

Internal Microphone and Speaker

Communication Interface

1 RJ45 10M / 100M Ethernet interface

On-board storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button

Yes

Wi-Fi Specification (-W)

Wireless Standards

IEEE802.11b, 802.11g, 802.11n

Frequency Range

2.4 GHz ~ 2.4835 GHz

Channel Bandwidth

20/40MHz Support

Modulation Mode

802.11b: CCK, QPSK, BPSK

802.11g/n: OFDM

Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Transmit Power

11b: 17±1.5dBm @ 11Mbps

11g: 14±1.5dBm @ 54Mbps

11n: 12.5±1.5dBm

Receive Sensitivity

11b: -90dBm @ 11Mbps (Typical)

11g: -75dBm @ 54Mpbs (Typical)

11n: -74dBm (Typical)

Transmission Rate

11b: 11Mbps

11g: 54Mbps

11n: up to 150Mbps

Wireless Range

50m(depend on environment)

General

Operating Conditions

-30 °C ~ 60 °C (-22 °F ~ 140 °F)

Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 10%, PoE (802.3af)

Power Consumption

5W MAX

IR Range

10 meters

PIR

Angle of detection: 80°

Detection range: 10 meters

Dimensions

72.3×91.5×131.3(2.85”×3.60” ×5.17”)

Weight

400g (0.88lbs)
