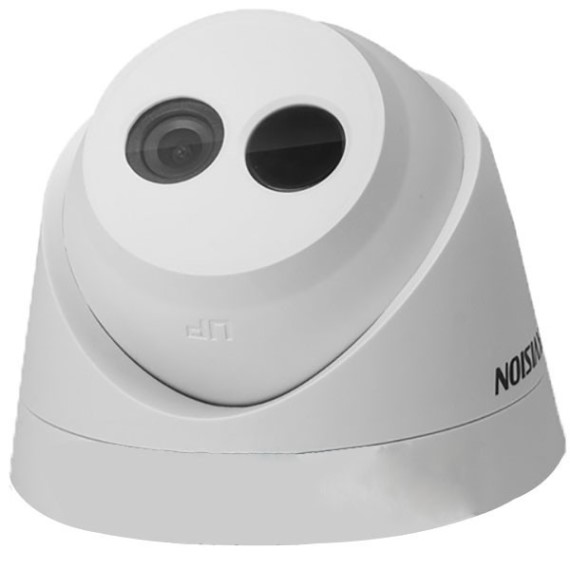

CAMERA IP DOME HỒNG NGOẠI 1.0 MEGAPIXEL HIKVISION DS-2CD1301D-I

Sensor type

1/4 inch Progressive Scan CMOS

Minimum Illumination

@ 0.01Lux (F1.2, the AGC the ON), 0 Lux the with the IR

0.028Lux @ (F2.0, the AGC the ON), the with the IR 0 Lux

shutter

1/3 of a second to 1 / 100,000 sec

Shot

4mm, horizontal viewing angle: 73.1 ° (2.8mm, 6mm, 8mm optional) (equivalent to 1/3 'sensor)

Lens Interface Type

M12

Adjust the angle

Level: 0 ° ~ 360 °; Vertical: 0 ° ~ 75 °; rotation: 0 ° ~ 360 °

Day and night mode

ICR filter type

Wide Dynamic Range

Digital WDR

BLC

Support, choose region

Digital Noise Reduction

3D digital noise reduction

Video compression standards

H.264 / MJPEG

H.264 encoding type

BaseLine Profile / Main Profile

Compression output rate

32 Kbps ~ 8Mbps

The maximum image size

1280 x 720

Frame rate

50hz: 25fps (1280 x 720)

60Hz: 30fps (1280 x 720)

Image Settings

Saturation, brightness, contrast through IE browser client or adjustable

BLC

Support, choose region

Interface Protocol

ONVIF, PSIA, CGI, ISAPI

Intelligent Alarm

Motion detection, dynamic analysis, occlusion alarm, cable break, IP address conflict

Support Agreement

TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour

General features

Anti-flicker, dual-stream, heartbeat, mirroring, password protection, video cover, watermark

Communication Interface

1 RJ45 10M / 100M adaptive Ethernet port

power supply

12VDC

Power

3.2W MAX

Infrared radiation from

10 m

Dimensions

Φ110 x 80.9mm

weight

190g
