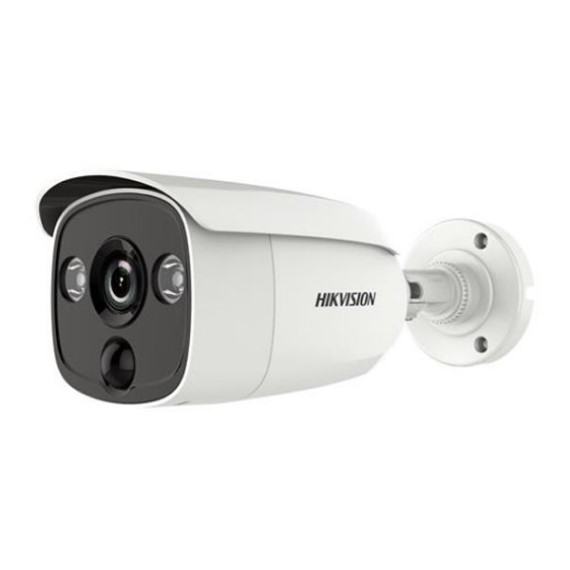

CAMERA HD-TVI HỒNG NGOẠI 5.0 MEGAPIXEL HIKVISION DS-2CE12H0T-PIRL
| Model | DS-2CE11H0T-PIRL |
| Camera | |
| Image sensor | 5.0 Megapixel progressive scan CMOS |
| Signal System | PAL/NTSC |
| Effective Pixels | 2560 (H) × 1944 (V) |
| Frame Rate | PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Lens | 2.8 mm, 3.6 mm fixed focal lens |
| Day& Night | IR cut filter |
| Synchronization | Internal Synchronization |
| Horizontal Field of View | 85.5°(2.8 mm), 80.1°(3.6 mm) |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360° |
| IR Range | 20m |
| PIR Range | Angle: 110°, Range: 11 m |
| Menu | |
| White Light | Alarm/Lighting/Off |
| D/N Mode | Auto/Color/BW (Black and White) |
| Auto White Balance | ATW/Manual |
| AGC | Yes |
| Language | English/Chinese |
| Function | Brightness, Contrast, Sharpness, Saturation, DNR, Mirror |
| General | |
| Power Supply | 12 VDC±25% |
| Material | Front cover: Metal Main body: Plastic |
| Protection Level | IP67 |
| Dimensions | 88.6 × 81.3 × 224.7 mm |
| Weight | 430g |
CAMERA HD-TVI HỒNG NGOẠI 5.0 MEGAPIXEL HIKVISION DS-2CE12H0T-PIRL
